Safety Zebra Guide Wire Delicate Access J Tip Guide Wire High Precision

Basic Information

Place of Origin:	China
Brand Name:	EVT
Certification:	ISO 13485, NMPA(CFDA)
Model Number:	BM-032S/BM032S150, BM-035S/BM035S150, BM032S150P, BM035S150P, BQ-032S-150, BQ-035S-150

Minimum Order Quantity:	5
Price:	USD 30 - 90 per piece
Packaging Details:	blister individually, 5 piece in a box
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	in stock

Get Best Price

Chat Now

Detail Information

Model:	Guide Wire	Tip Material:	Tungsten
Tip Shape:	Straight /Curved	Length:	150 Cm /260 Cm
Sterilization:	Ethylene Oxide Sterilization	Coating:	Hydrophilic
Radiopacity:	High
Highlight:	Safety Zebra Guide Wire , High Precision Zebra Guide Wire , Delicate Access J Tip Guide Wire

Product Description

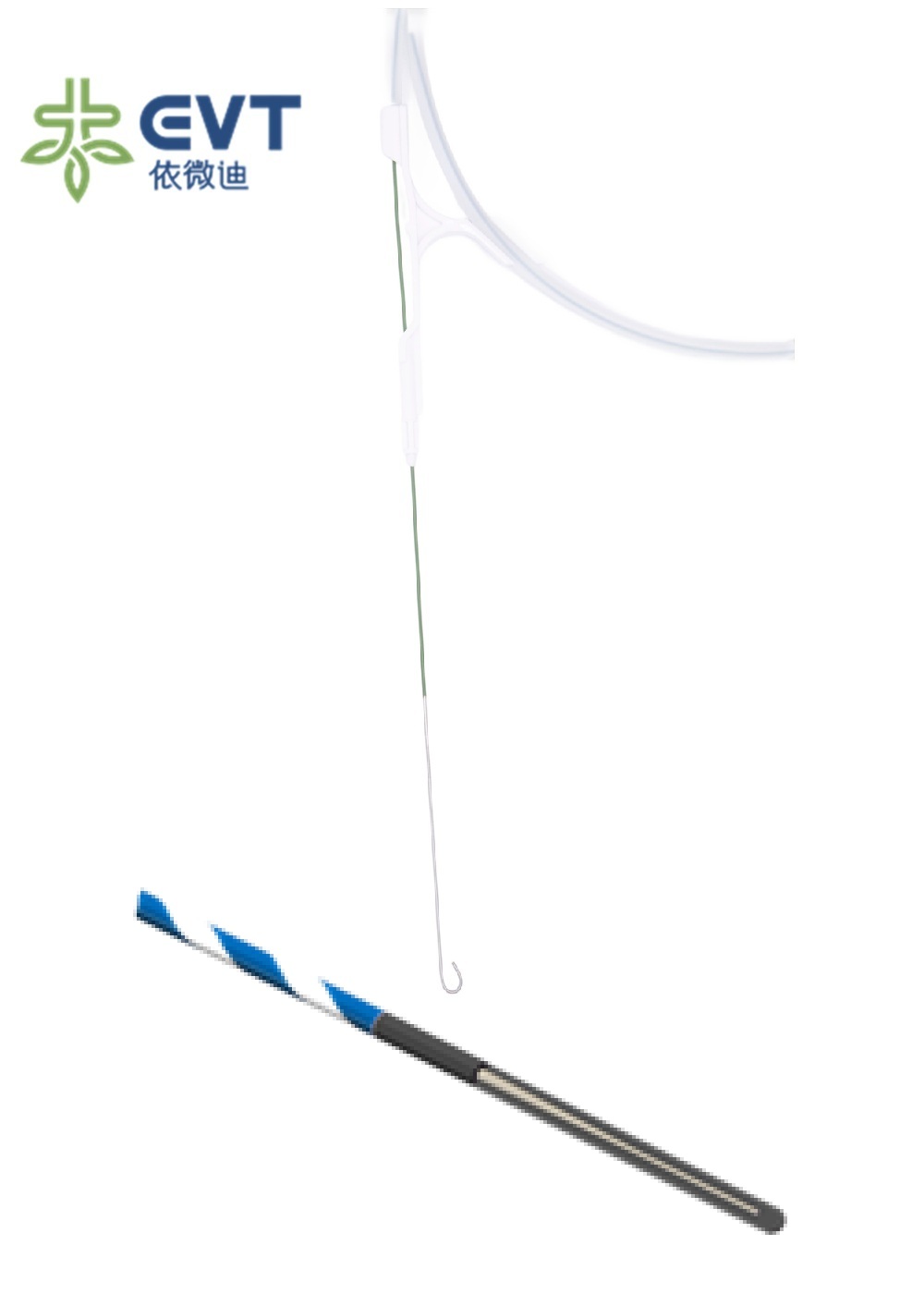

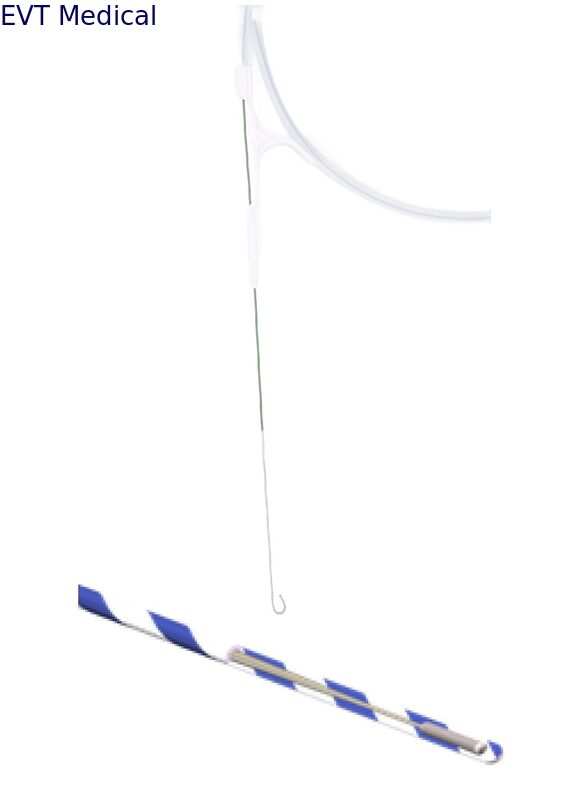

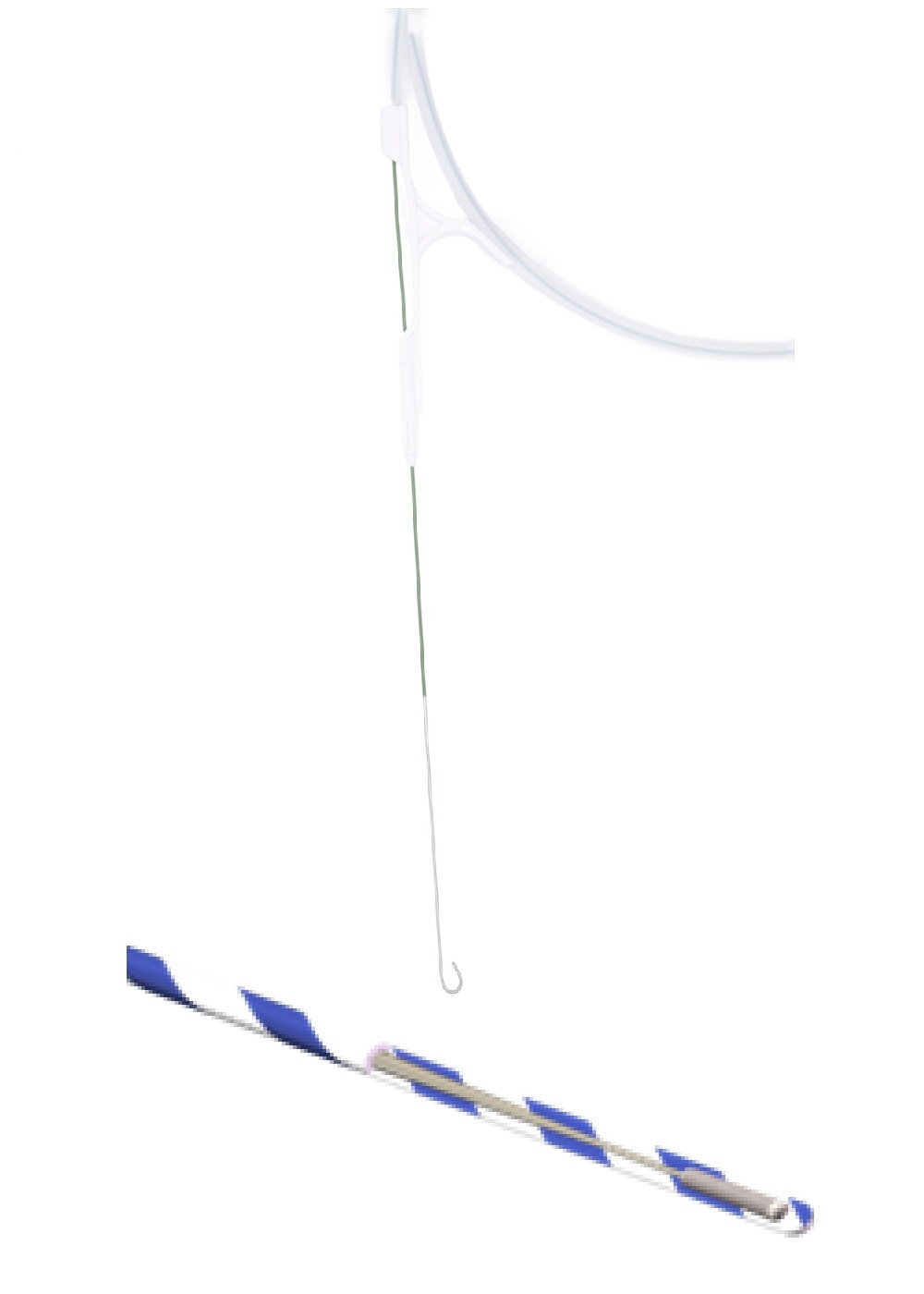

Safety Focused J Tip Ureteral Guidewire for Delicate Access

Engineered for challenging initial ureteral access, our protective J-tip guidewire combines anatomical safeguards with intelligent visual markers to prevent iatrogenic injury during catheterization and stenting procedures.

Key Safety Features

Protective J-Curve: 3.5mm radius prevents mucosal penetration
Progressive Stiffness: 25g/mm² soft tip transitions to 90g/mm² support shaft
Visual Safety System:
Red spiral: Terminal 5cm warning zone
Green spiral: Optimal instrumentation segment
Clinical Validation: Zero false passages in initial 150 cases

Technical Specifications

Length: 150cm working distance
Coating: Hydrophilic distal 10cm (0.03 friction coefficient)
Tip Options: Fixed J-tip (35° curve)
Compatibility: Standard 5Fr+ catheters

This intelligent guidewire system redefines safe ureteral access through integrated protective design elements and real-time visual feedback for clinicians.

Size (lnch)	Length (cm)	Tip
0.025"	150	Straight, Hydrophili
0.028″		Straight, Hydrophili
0.032"		Straight, Hydrophili
0.035″		Straight, Hydrophili
0.038″		Straight, Hydrophili
