Medical Percutaneous Transhepatic Biliary Drainage Dilators Guide Wire PTBD Catheter Set

Intended Use

To establish percutaneous transhepatic access for endoscopic entry into dilated bile ducts.

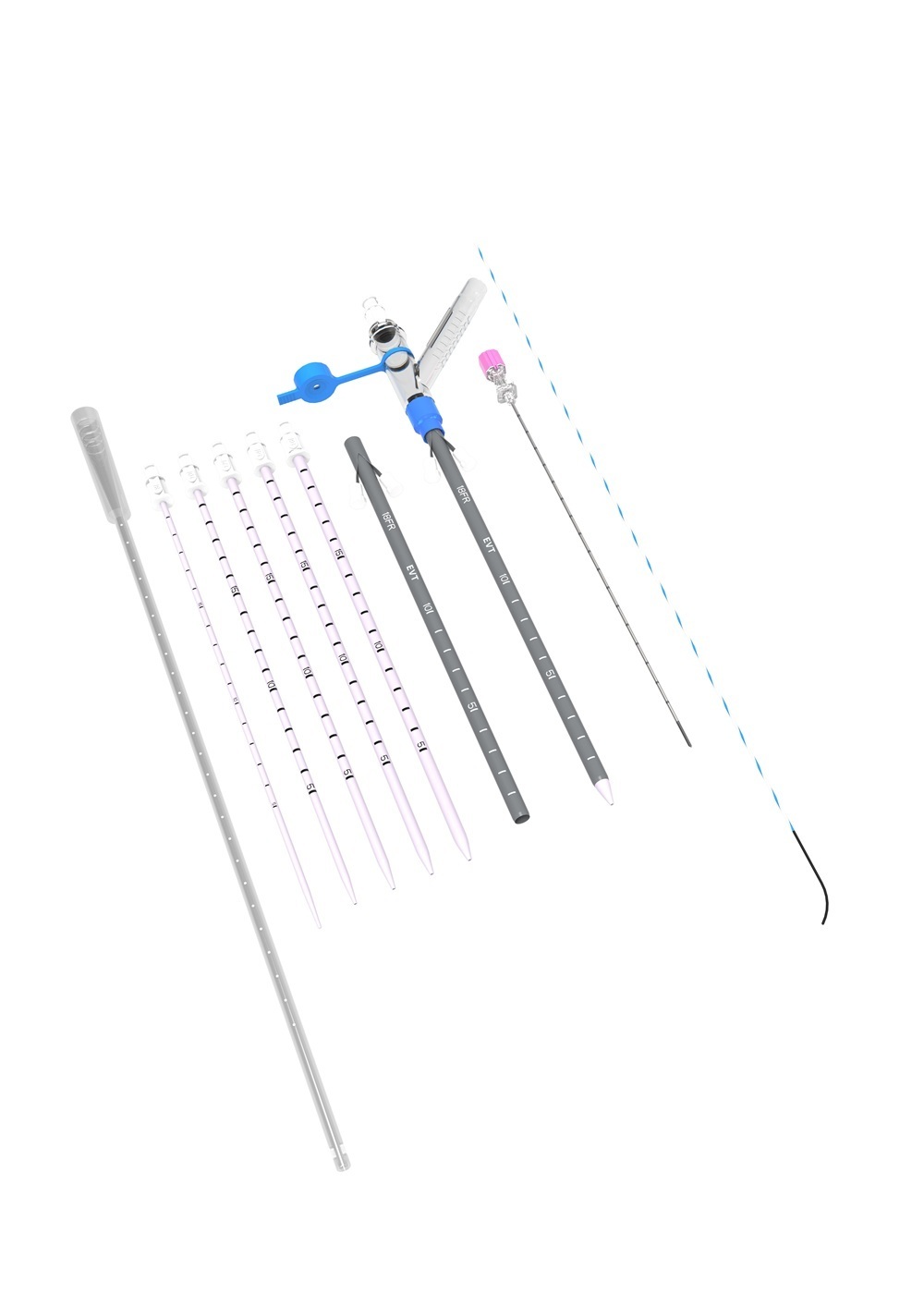

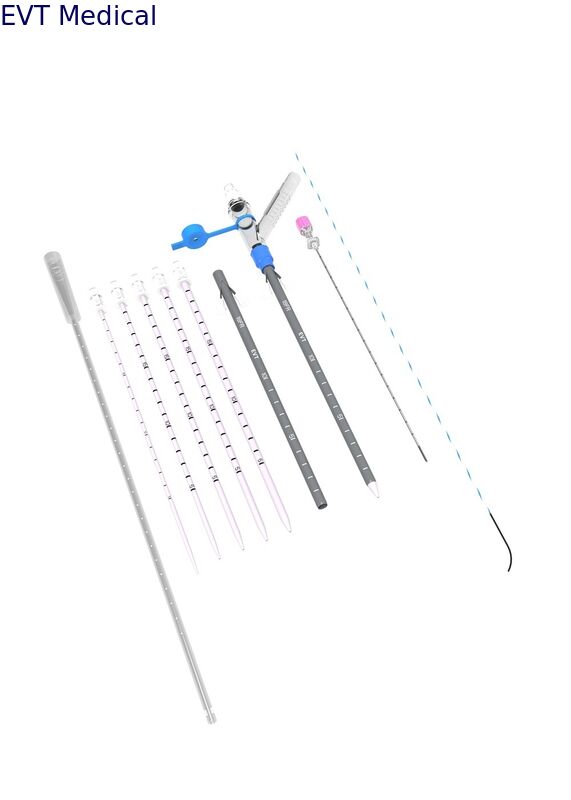

Components

Drainage tube, dilator, peel-away sheath, puncture needle, guidewire

Product Description

Puncture needle: Sandblasted tip with inner air channel for enhanced dual-contrast visualization.
Guidewire: Nitinol core provides strong support with hydrophilic tip for smooth insertion and reduced resistance.
Dilator: Medical-grade polyethylene material with optimal stiffness.
Peel-away sheath: Optional negative pressure/non-negative pressure models available; tapered tip design ensures seamless transition and smooth insertion.
Drainage tube: Straight single-lumen silicone tube with large inner diameter for unobstructed drainage.

Peelable sheath	Dilators	Needle	Drainage Tube	Drainage Collection Bottle
14F	8-14F	18G	0.032in Angled tip	150mL
16F	8-16F			150mL
14F	8-14F			/
16F	8-16F			/
Note:The above are common specifications.lf you need other specifications, please contact the sales manager. For contraindications or precautions, please refer to the instructions.
