Product Description

Product Description

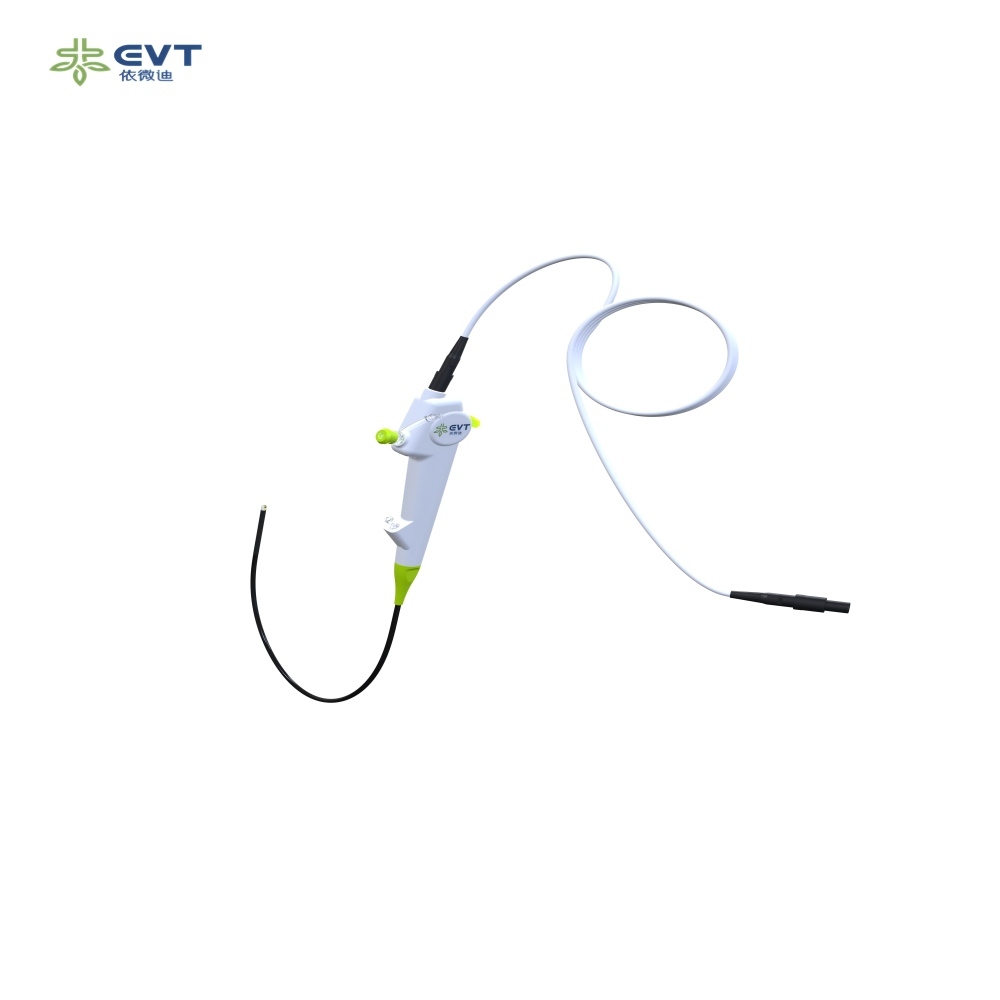

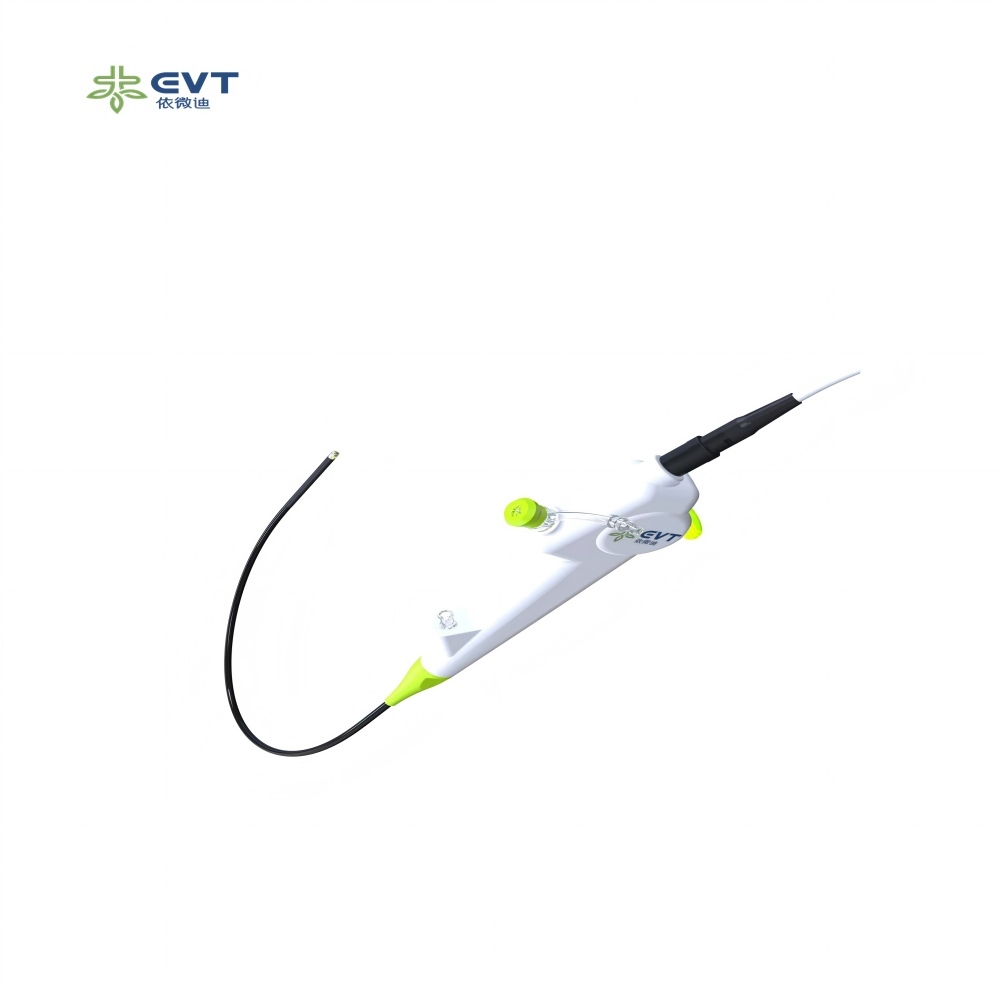

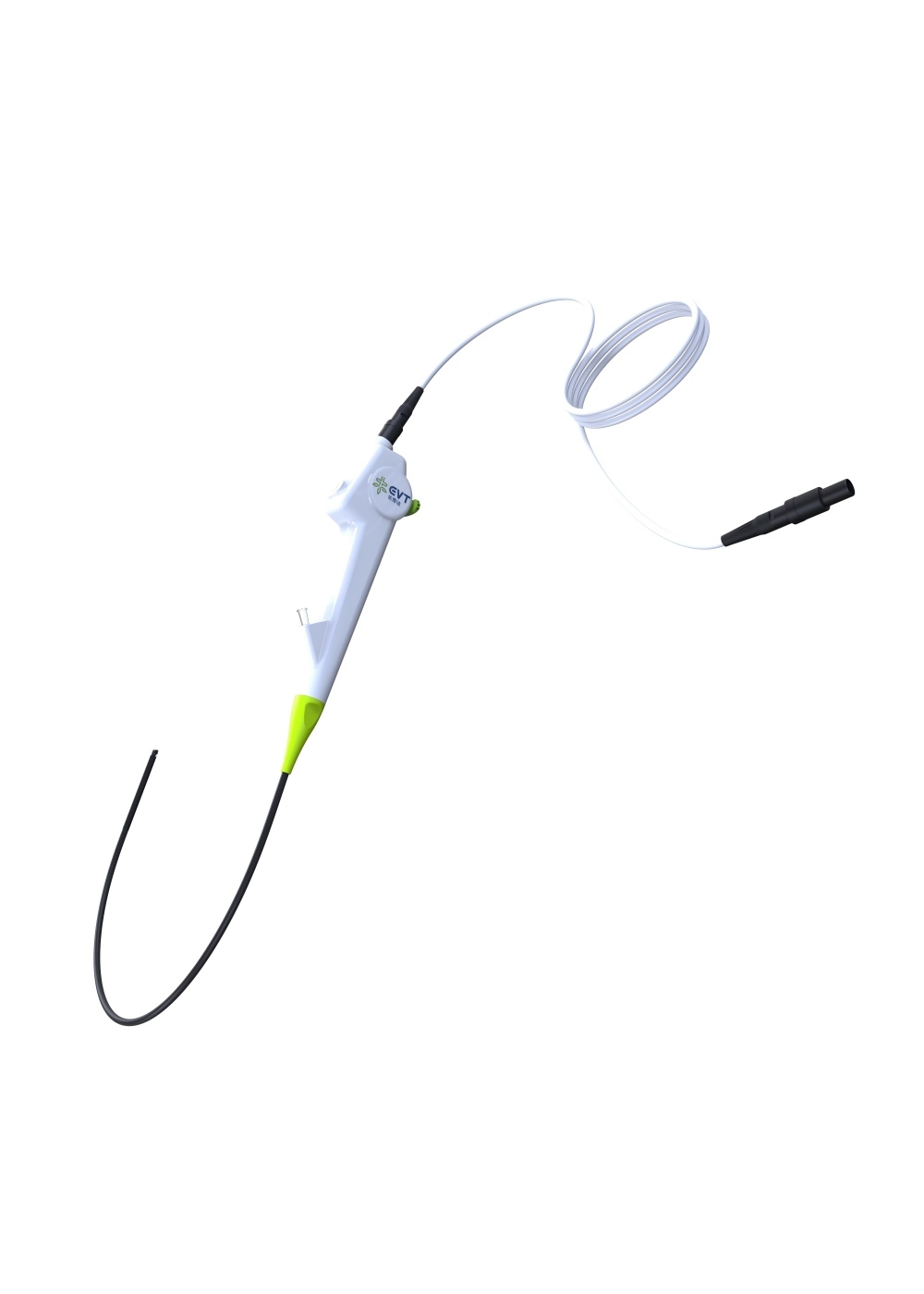

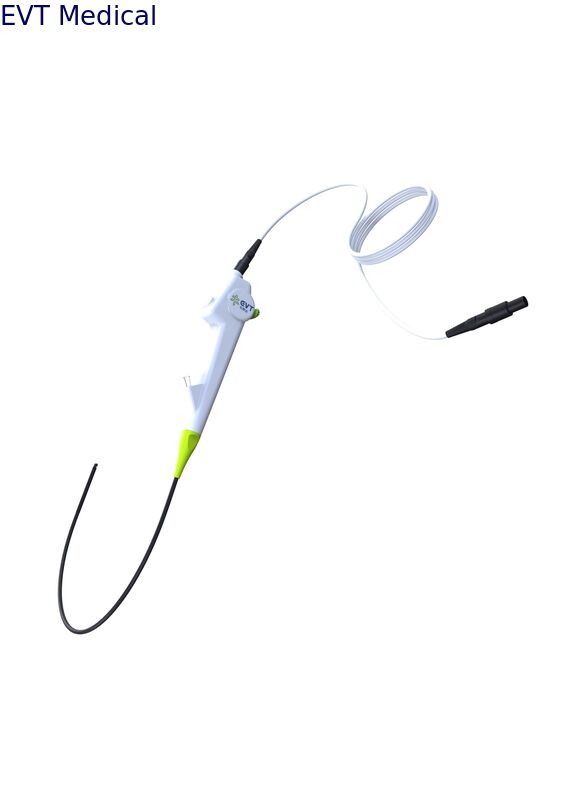

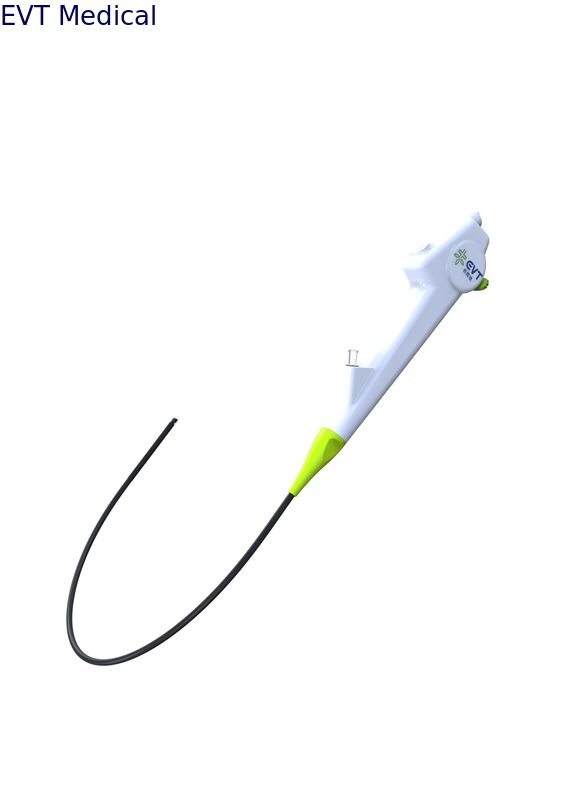

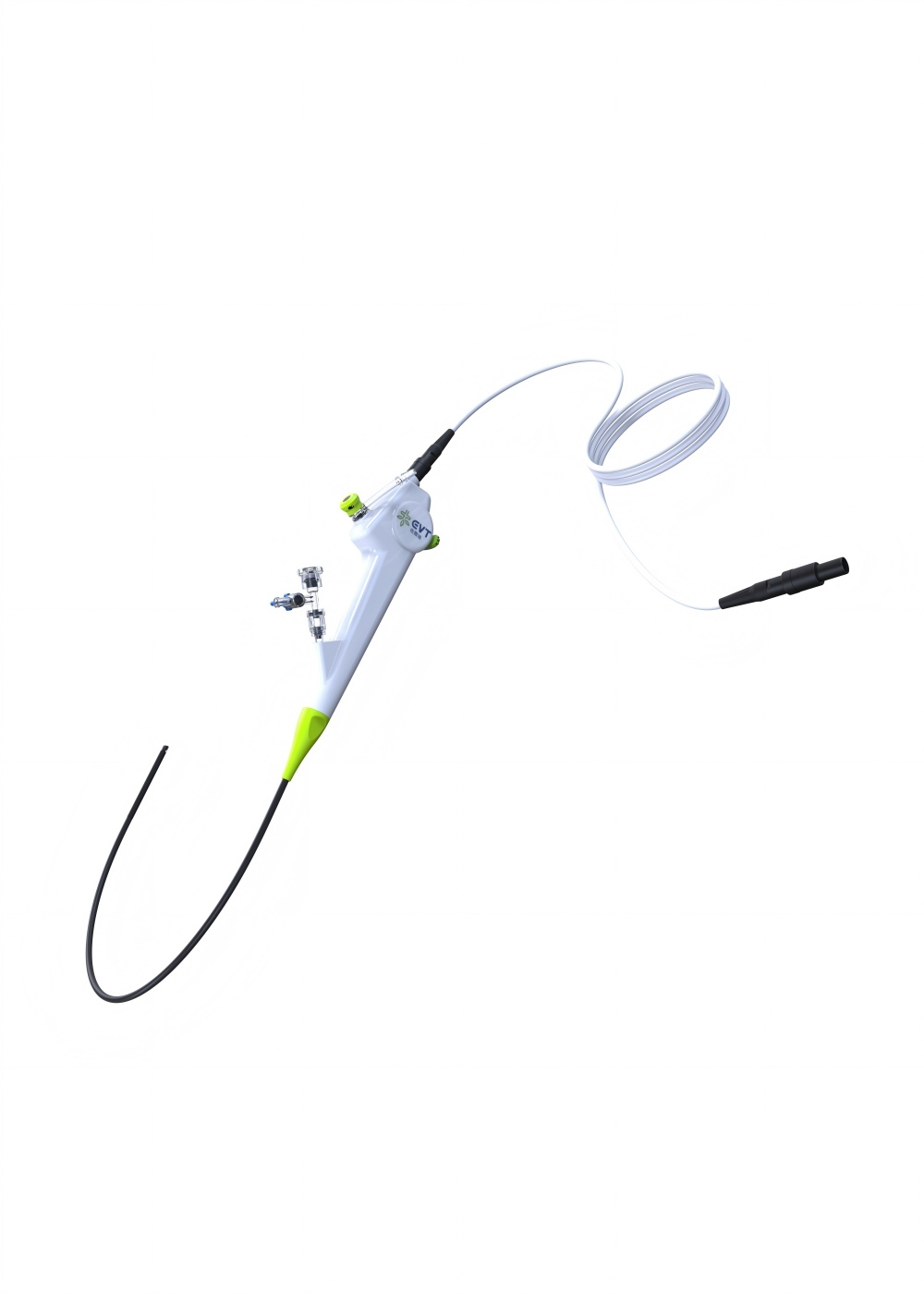

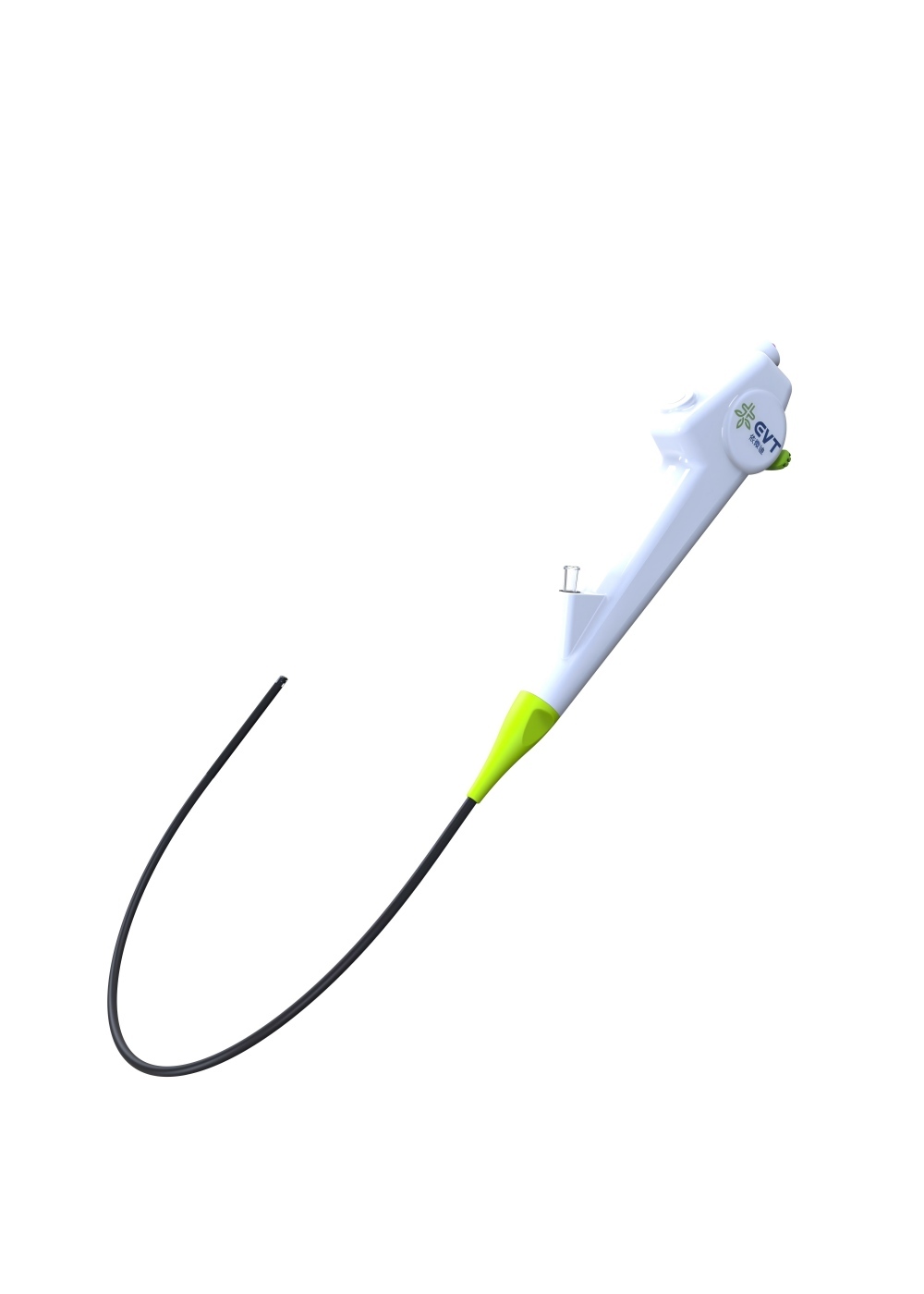

The Disposable Digital Endoscope is a single-use electronic endoscopic device intended for use with the EVT Portable Endoscopic Image Processor. It provides high-definition visualization on a video monitor and is indicated for the examination, diagnosis, and therapeutic procedures of the urethra, bladder, and renal pelvis via the percutaneous approach.

Featuring an integrated sterile design, the device helps minimize the risk of cross-contamination. It offers bidirectional high-angle deflection, axial rotation, and negative-pressure suction, making it suitable for a wide range of minimally invasive urological procedures.

Cystoscope Model Matrix and Technical Specifications

No.	Model	Insertion Tube OD (mm)	Max. Insertion Portion OD (mm)	Min. Working Channel ID (mm)	Distal End OD (mm)	Working Length (mm)	Suction Function	Stopcock Valve	Signal Cable
1	BE5138110	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Included	Included	Not Included
2	BE5138010	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Not Included	Included	Not Included
3	BE5138100	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Included	Not Included	Not Included
4	BE5138000	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Not Included	Not Included	Not Included
5	BE5138111	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Included	Included	Included
6	BE5138011	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Not Included	Included	Included
7	BE5138101	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Included	Not Included	Included
8	BE5138001	4.9 / 14.7 Fr	5.25 / 15.8 Fr	2.0 / 6 Fr	5.1 / 15.3 Fr	380	Not Included	Not Included	Included
9	BE5338110	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Included	Included	Not Included
10	BE5338010	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Not Included	Included	Not Included
11	BE5338100	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Included	Not Included	Not Included
12	BE5338000	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Not Included	Not Included	Not Included
13	BE5338111	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Included	Included	Included
14	BE5338011	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Not Included	Included	Included
15	BE5338101	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Included	Not Included	Included
16	BE5338001	5.1 / 15.3 Fr	5.45 / 16.4 Fr	2.2 / 6.6 Fr	5.3 / 15.9 Fr	380	Not Included	Not Included	Included
17	BE5538110	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Included	Included	Not Included
18	BE5538010	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Not Included	Included	Not Included
19	BE5538100	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Included	Not Included	Not Included
20	BE5538000	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Not Included	Not Included	Not Included
21	BE5538111	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Included	Included	Included
22	BE5538011	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Not Included	Included	Included
23	BE5538101	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Included	Not Included	Included
24	BE5538001	5.3/15.9Fr	5.65/17Fr	2.4/7.2Fr	5.5/16.5Fr	380	Not Included	Not Included	Included

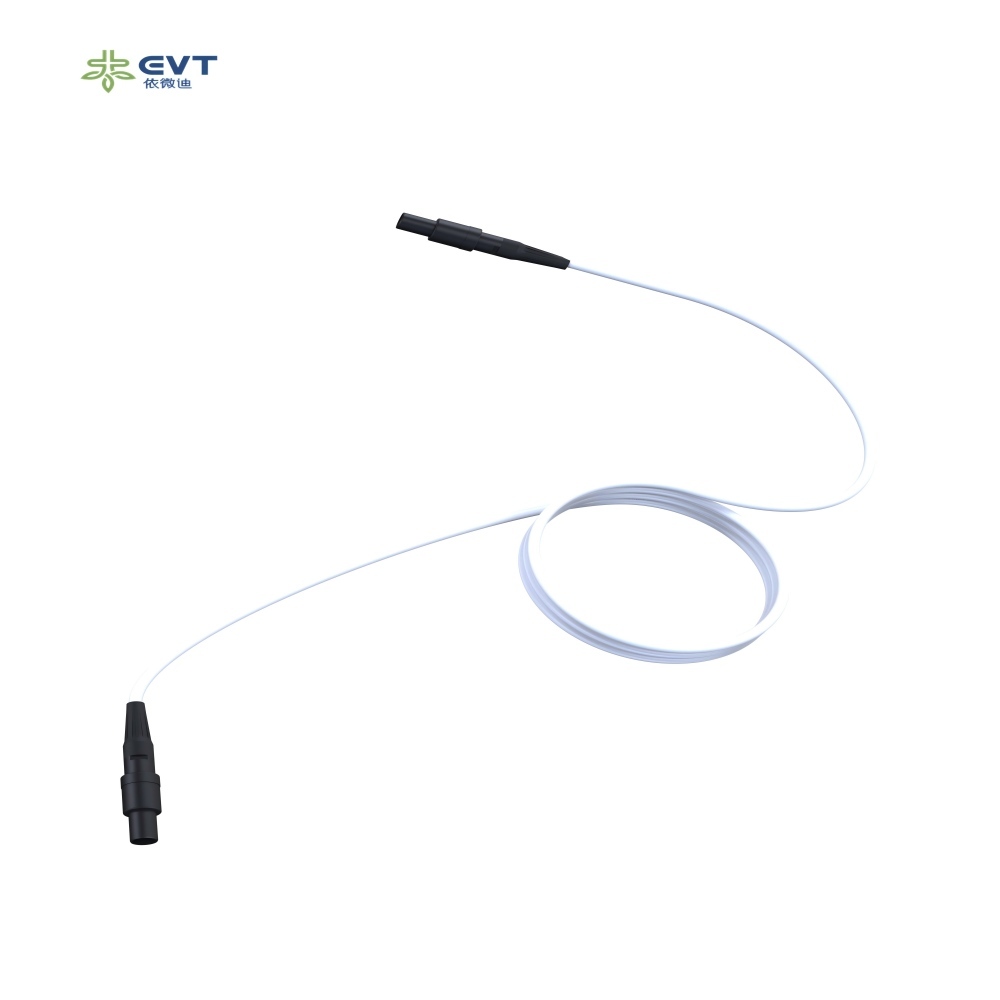

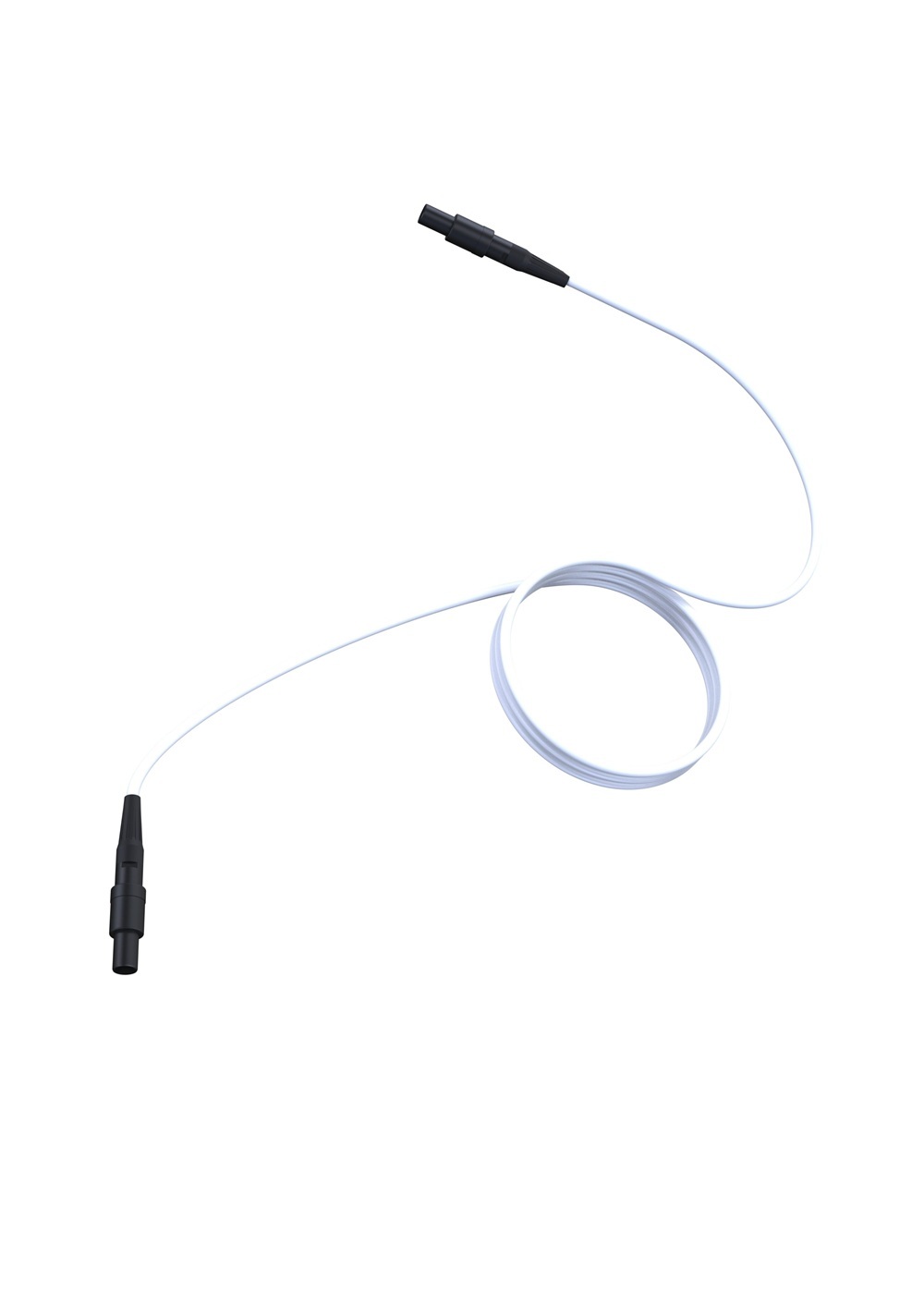

25	BEOD45L180	/	/	/	/	/	/	/	Included

Key Features & Benefits:

1280×720 HD imaging with 110° FOV and dual LED illumination
210°/210° bidirectional deflection + 30° axial rotation
3 size options (4.9/5.1/5.3mm OD) with modular functional configurations

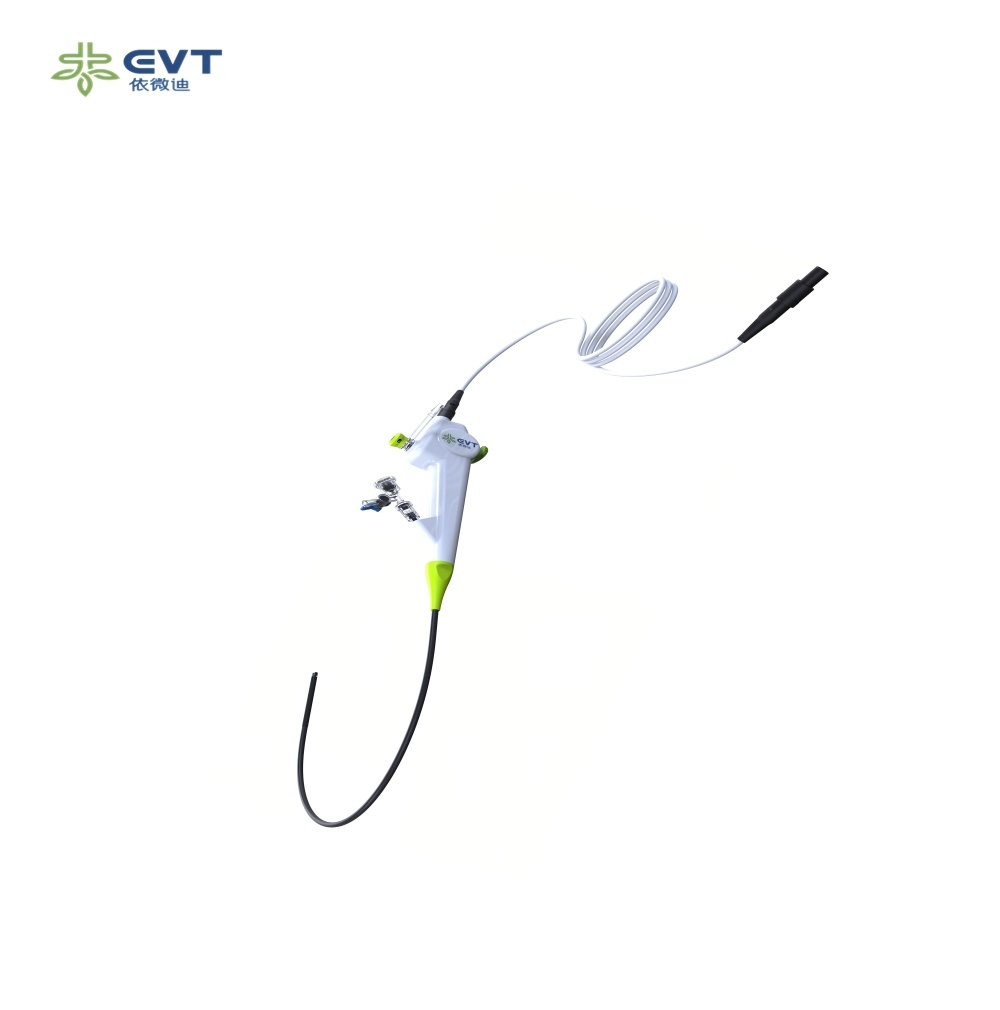

Integrated suction valve and adjustable fluid stop valve
Single-use sterile design, no cross-infection risk

Tag:

Place of Origin:	China
Brand Name:	EVT
Certification:	ISO 13485, NMPA(CFDA)
Model Number:	BE5538111;BE5538001;BE5538000;BEOD45L180

Minimum Order Quantity:	10
Packaging Details:	blister individually, 10 piece in a box
Delivery Time:	5-8 woking days
Payment Terms:	T/T
Supply Ability:	in stock

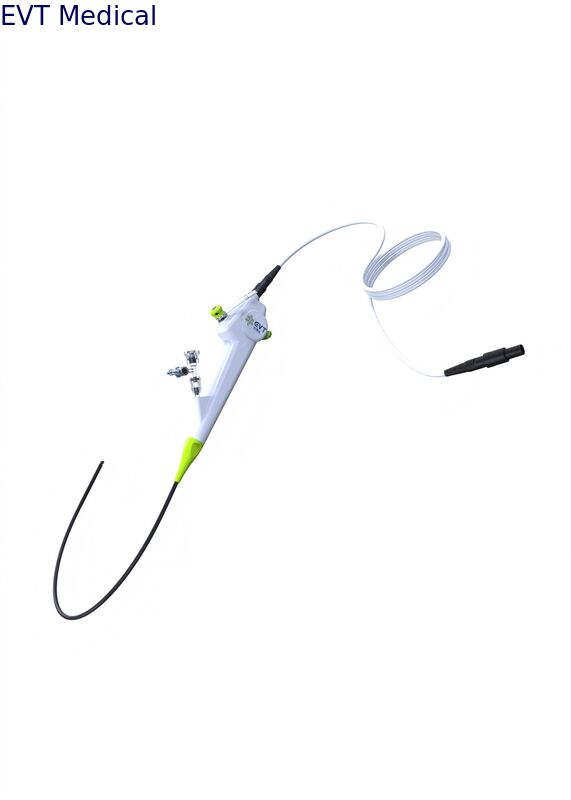

Single-use Digital Flexible Cystoscope
